For those who have only one older generation hydraulic brake, we have created a small control console that contains the same controls as the console that manages two hydraulic brakes, but in this case it will exclusively manage one.

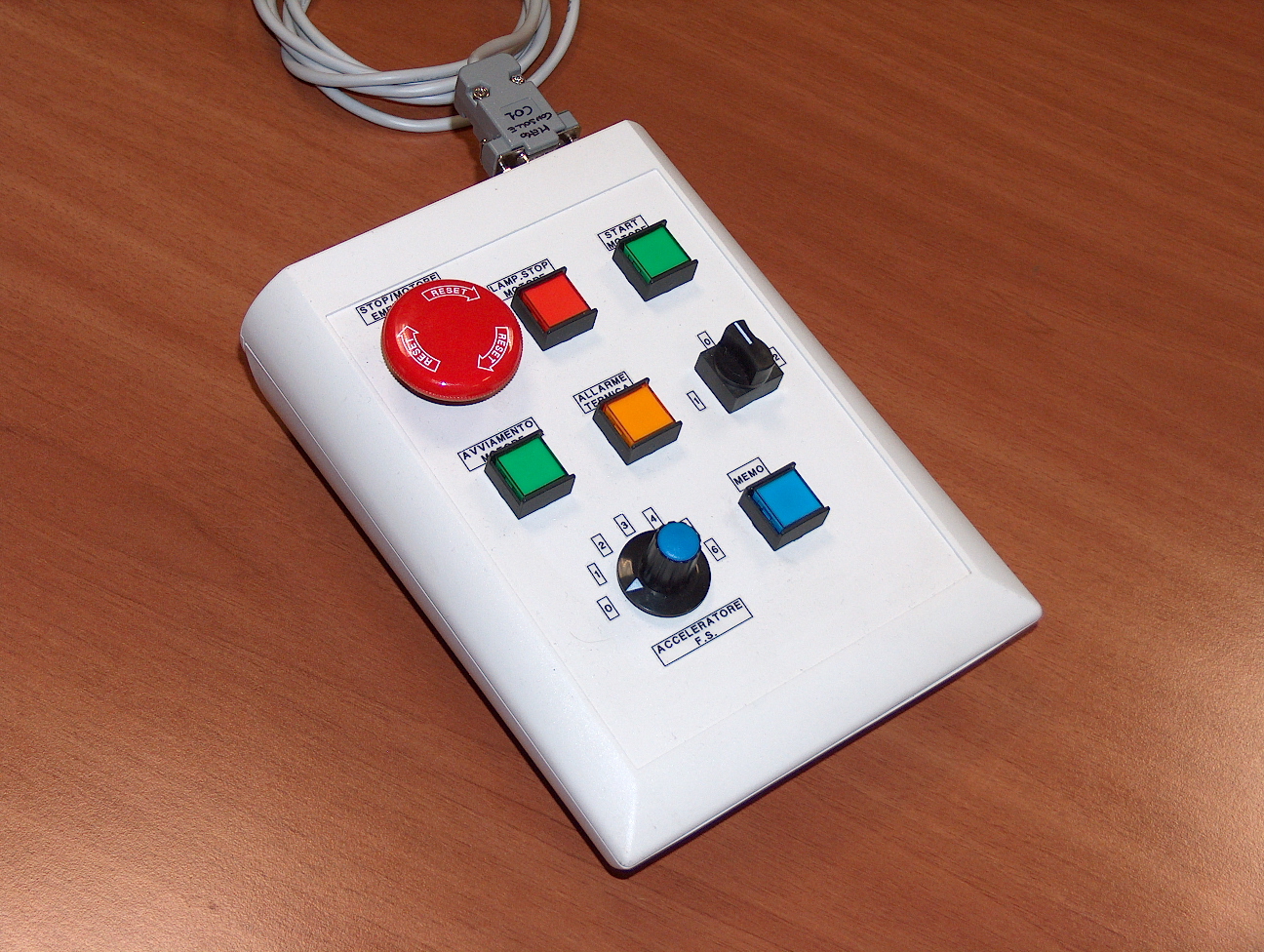

On the front, there will be the following buttons:
- Low voltage motor engagement light button
- Motor stop button
- Motor start button
- Data storage button
- Pneumatic throttle control selector, inside the console is an electronic board that, depending on the selector setting, will precisely command the three solenoid valves for throttle management on railway engines.

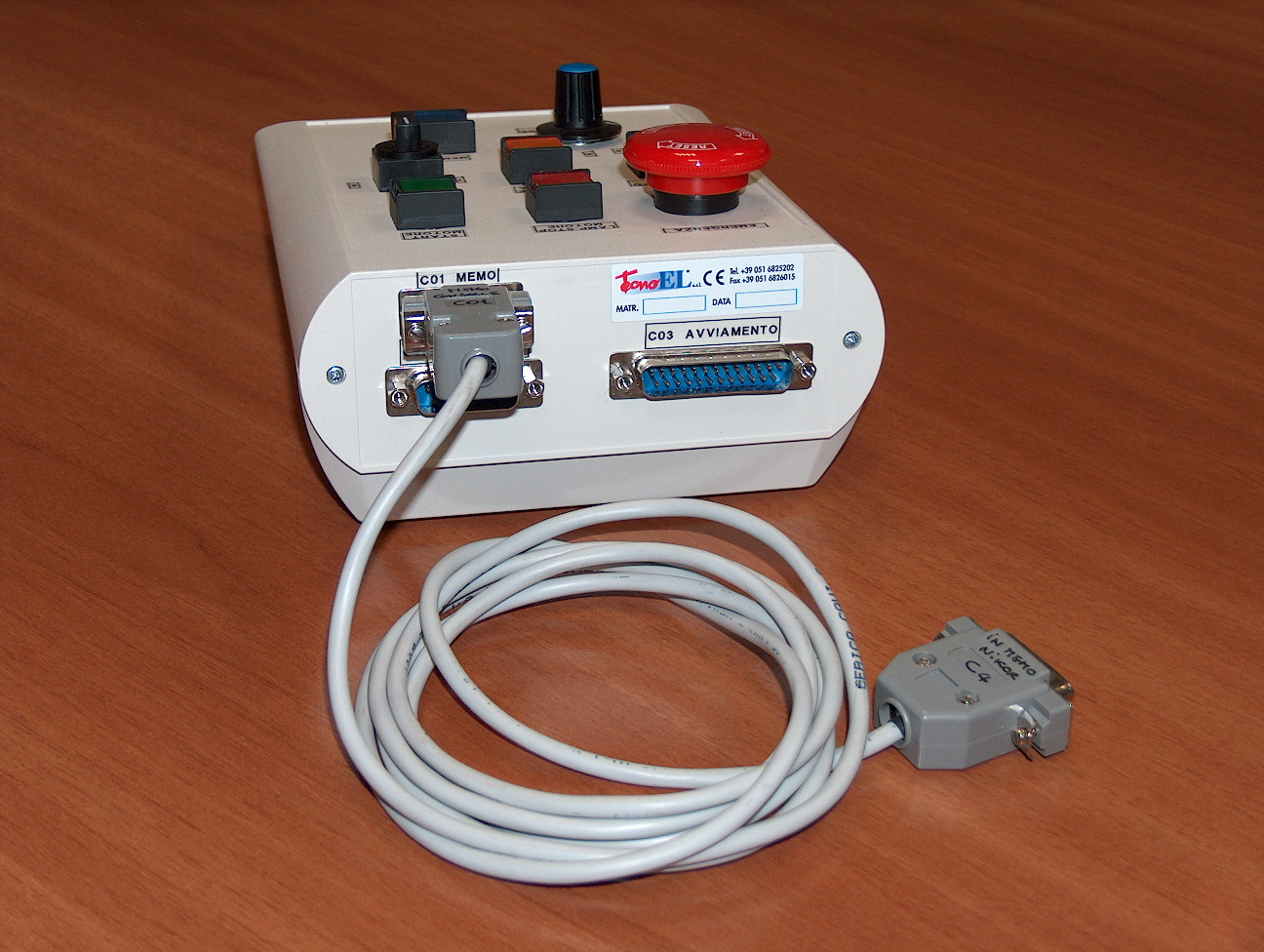

At the back, there are various tray connectors that will be used to collect signals coming from the various components located on the front of this control console.
TECHNICAL NOTE: The START/STOP and MOTOR START commands, as well as the THROTTLE SOLENOIDS, are only clean contacts with a capacity of 0.5A and therefore must be connected to appropriate power relays.
