Standard Command Console Large

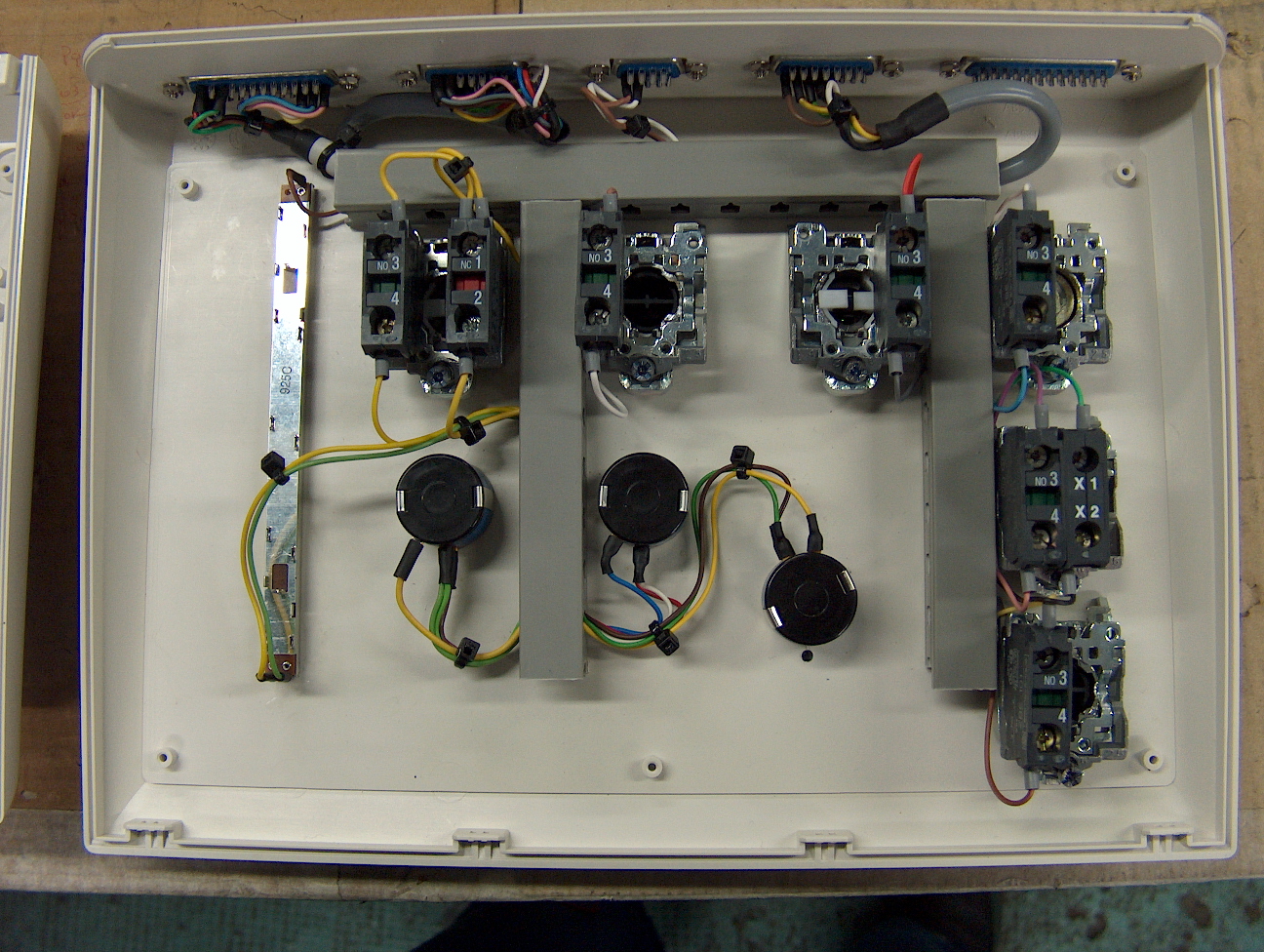

To assist the operator in managing the engine control instruments, a mobile console has been created, allowing the operator to act on both the engine management controls and the adjustment controls without taking their eyes off the engine view or the data reading. This console houses on its control panel:

  • Illuminated button for low voltage insertion to the engine
  • Engine Stop button
  • Engine Start button
  • Engine management control selector
  • Data storage button
  • Braking adjustment potentiometer *
  • Mn² adjustment potentiometer *
  • Accelerator adjustment potentiometer (with multi-turn potentiometer)*
  • Accelerator adjustment potentiometer (with SLIVE)*
  • Accelerator adjustment control selector*

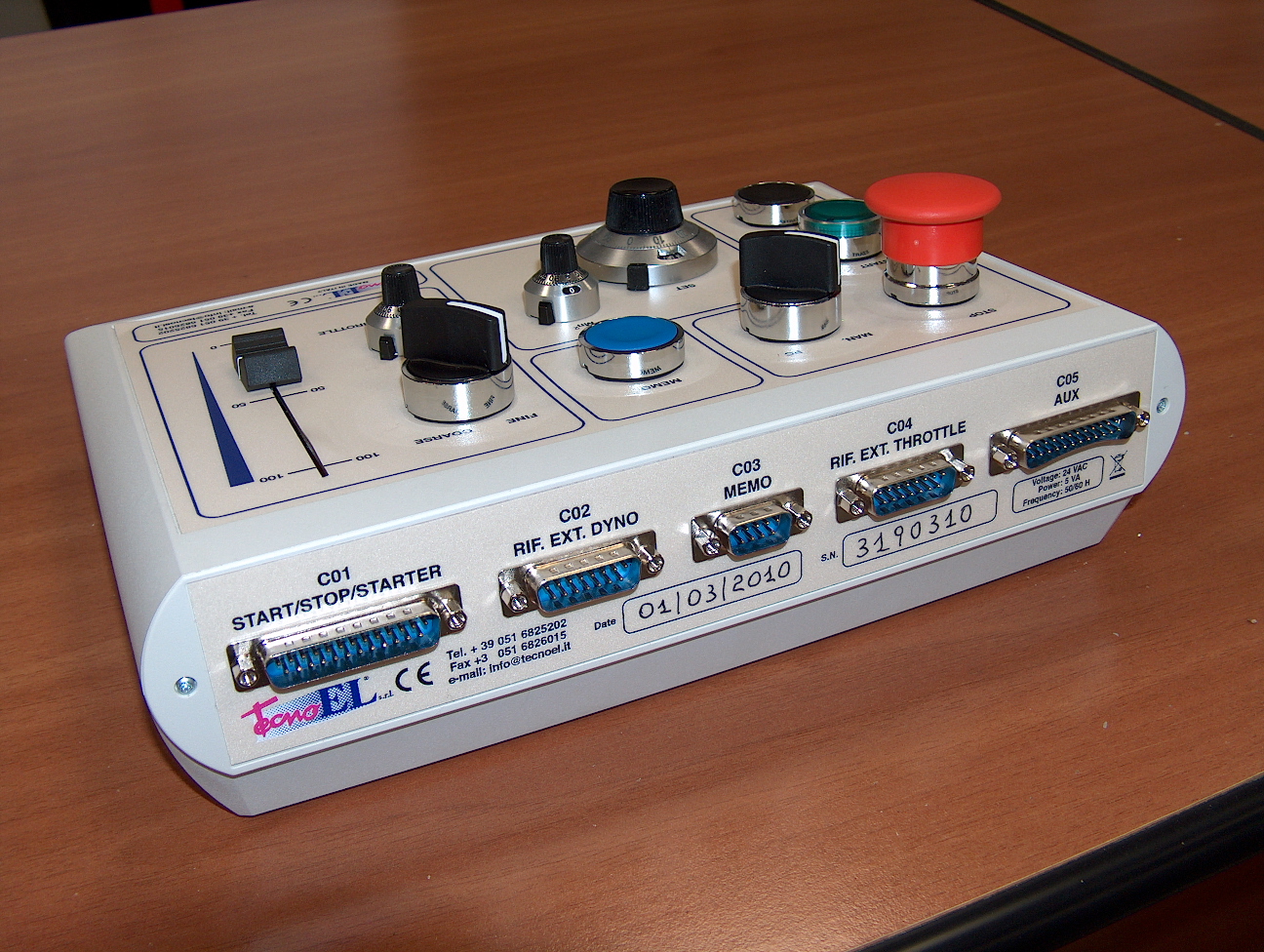

At the back, there are various recessed connectors that will be used to pick up the signals coming from the various components located on the front of this command console.

TECHNICAL NOTE

  • This console has been designed taking into account the various types of power supplies and accelerator controls.
  • In particular, the controls marked with ( * ) are designed for the power supplies and actuators of Borghi& Saveri, APICOM, and TECNO EL.
  • The controls can be used directly by applying them to your auxiliary relays, but for correct management, we recommend using the electromechanical panel that we supply, but not included with this product (it is found within the rack cabinets, product code PI 0051).
